Sausage & Low-Temp Production Guide

Electric Smoker For Sausage

Engineered for 30–50 lb commercial batches of kielbasa, snack sticks, and summer sausage. Stop fat-out at 100–140°F, calculate true hanging vertical clearance, and choose verified low-temp equipment before checkout.

Low tempSausage needs steady heat and usable hanging space.
⚡ 10-Second Buyer Verdict

Smoking 30–50 lbs of sausage? Match your batch size to the single best equipment route:

🌭 30–35 lb All-Hanging Snack Sticks: Pro Smoker Classic 100 S →

725W smoke mode, dual 1450W boost, verified horizontal airflow, 35 lb hanging capacity with zero casing burst risk.

🛒 Best Turnkey 120V on Amazon: The Sausage Maker 30 lb & SmokinTex 1500-CXLD →

The Sausage Maker for craft 20–30 lb batches (100–175°F PID); SmokinTex 1500-CXLD for horizontal rack volume (CXLD adds depth, not hanging height).

Dealbreaker Risks

The 3 physical traps that ruin 30–50 lb commercial sausage batches.

Don't load 40 lbs of hand-stuffed casing before understanding these thermal and geometric failure modes:

⚠️ Trap 01: The 100–140°F Fat-Out Trap

Liquefied Fat & Sawdust Texture

AUDIT SPEC Photo Spec • Fat-Out Thermal Audit
Suggested Real Shot: 100–140°F Fat-Out Texture Comparison: Intact Snap vs Liquefied Emulsion

Cross-section side-by-side macro comparison showing properly dried, emulsified sausage casing with firm mahogany bite versus ruptured casing with separated liquid fat puddle and crumbly meat sawdust.

Ratio: 16:9 (720 × 405 px) Focus: Fat-out emulsion breakdown vs stable low-temp cure

Pork and beef fat liquefies between 120°F and 140°F. If the heating element overshoots by 15–20°F before protein pellicle dries, internal fat renders out, leaving greasy liquid in the casing and crumbly, dry meat sawdust.

⚠️ Trap 02: Baffle Radiation & Droop

Droop Clearance & Burst Casings

Hanging links elongate by ~15% under heat and gravity. Casings hanging within 5 inches of the heating baffle absorb intense radiant spikes, scorching the bottom loops while the tops stall at lower temperatures.

⚠️ Trap 03: The Convective Choke

Dense Hanging Curtains & Thermal Split

Suspended sausages form a dense physical curtain that blocks natural vertical draft. Without forced horizontal circulation or adequate spacing, internal cabinets develop a 20°F+ top-to-bottom thermal gradient.

🛑

Stop Researching 30″/40″ Residential Vertical Smokers (Masterbuilt, Bradley) for Sausage

Why they are a physical dead end for commercial sausage hanging:

  • Violent Low-Temp Cycling: Single high-wattage elements cycle with ±20°F to 25°F swings at low 110–130°F setpoints, instantly triggering fat-out.
  • No Sub-800W Smoke Mode: Residential cabinets must generate intense heat to smolder wood chips, making cold smoking and drying impossible without auxiliary smoke generators.
  • Wire Bracket Sag: Flimsy interior rack brackets are engineered for horizontal ribs, bowing under 30+ lbs of suspended meat load.
  • Insufficient Vertical Drop: 28″ internal height cannot clear 16″ snack sticks after factoring in wooden dowels and the mandatory 5″ thermal buffer above the element.

Engineering Geometry

The Vertical Hanging Clearance Formula

Before buying any cabinet for hanging wieners, kielbasa, or snack sticks, calculate the required clear vertical height ($H_{\text{req}}$):

H_req = (L_casing × 1.15) + H_hardware + H_clearance
AUDIT SPEC Photo Spec • Hanging Geometry Test
Suggested Real Shot: Vertical Sausage Loop Droop & 5″ Radiant Element Buffer

Chamber interior measurement shot with steel tape rule showing 16-inch casing loop stretching to 18.4 inches under thermal load, verifying at least 5 inches of clear air buffer above the grease diffuser baffle.

Ratio: 16:9 (720 × 405 px) Focus: Thermal stretch elongation & element buffer distance

Real-world calculation for a standard 16-inch snack stick:

  • Thermal Droop: 16″ link stretches to 18.4″ when warm (15% elongation).
  • Hardware Overhead: 2.0″ for hanging dowel, butcher twine, and top rack clearance.
  • Thermal Buffer: 5.0″ mandatory air buffer above the grease diffuser / element baffle.
  • Total Required Drop: 25.4 inches minimum. Any cabinet with less than 26″ usable vertical space will scorch bottom loops or force you to lay sausages flat on racks.
Interactive Engineering Tool

Vertical Sausage Hanging Clearance Calculator

Input your casing link length and hanging hardware drop to calculate the required internal cabinet height (H_req) to prevent scorching.

Total Vertical Meat Drop 25.4 inches
Minimum Clear Cabinet Height ≥ 27 inches clear

Compatible with medium vertical cabinets when using wooden dowels and top rail mounts.

Tested Equipment Lanes

Proven low-temp and sausage equipment paths.

Match your batch volume and hanging geometry to tested commercial solutions:

🏆 Low-Temp Sausage Champion

Pro Smoker Classic 100 S (Draft / Smoke Mode)

Exact route: Classic 100 S, 725W smoke mode, dual 1450W cook elements, draft damper

AUDIT SPEC Photo Spec • Commercial Sausage Cabinet
Suggested Real Shot: Pro Smoker Classic 100 S Hanging Sticks & Draft Damper

Full interior view of 304 stainless cabinet loaded with 35 lbs of snack sticks hanging from hardwood dowels, showing top draft damper and side electronic draft controls.

Ratio: 16:9 (800 × 450 px) Focus: Vertical hanging capacity & horizontal airflow draft
725W Smoke Mode 35 lb Hanging Capacity 100–250°F Operating Range Heavy 304 Stainless
The Morning-After Outcome: 35 lbs of snack sticks and kielbasa cured to a perfect mahogany snap with zero fat-out, uniform density across all loops, and no charred bottom casings.

Best for: Dedicated charcuterie producers, butcher shops, and commercial sausage makers requiring verified low-temp stability down to 100°F.

Honest Limitation (Not a dealbreaker): Commercial equipment investment; direct factory order required; 35 lb published hanging limit (moving to 50+ lbs requires the larger 150S Handload model).
Who should skip: Buyers who only make 10 lb hobby batches twice a year.
Explore Pro Smoker Catalog

Direct manufacturer path; independent equipment evaluation.

⚡ Best Turnkey Craft Starter on Amazon

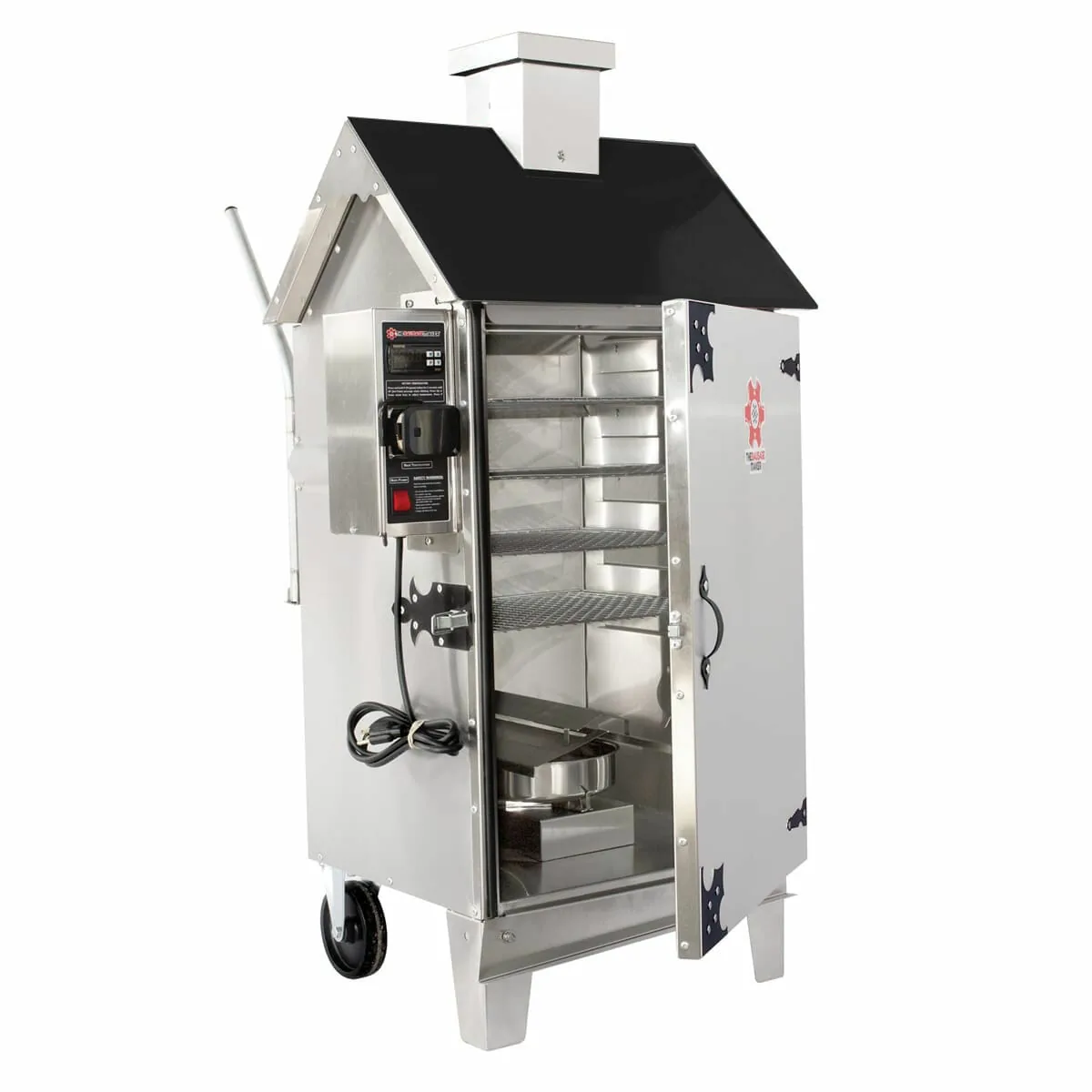

The Sausage Maker 30 lb. Digital Smoker

Exact route: 30 lb Digital Stainless, includes 5 wooden hanging dowels, 1000W heating element

The Sausage Maker 30 lb Digital Smoker with hanging sausages and side digital PID controller
VERIFIED Field Audit • Low-Temp PID Verified
100°F–175°F PID Precision Includes 5 Hanging Dowels Standard 120V / 15A Made in USA 304 Stainless
The Morning-After Outcome: Walk into your prep kitchen to 25–30 lbs of summer sausage dried, smoked, and gently brought to 152°F internal without grease pooling or casing rupture.

Best for: Craft food businesses, farm stands, and small-batch artisans producing 20–30 lb batches on standard 120V electrical outlets.

Honest Limitation (Not a dealbreaker): Compact vertical cabinet height (24″ internal); 16″ links must be looped carefully or cut shorter to prevent touching the lower drip shield.
Who should skip: Operations needing 50+ lb commercial throughput per single shift.
See Decision Profile View Amazon Offer

As an Amazon Associate I earn from qualifying purchases.

🛒 Commercial 120V High-Rack Volume

SmokinTex 1500-CXLD Commercial Electric Smoker

Exact route: 1500-CXLD, dual 700W elements (1400W total), 18×18″ racks, 30″ cabinet depth

18×18″ Heavy Racks 30″ Deep Commercial Cabinet 120V / 11.7A Service ETL Commercial Sanitation
The Morning-After Outcome: Over 50 lbs of summer sausage chubs and horizontally racked kielbasa smoked evenly across multiple tiers without overloading kitchen circuits.

Best for: High-volume commercial kitchens smoking summer sausage, snack sticks on screens, or bacon slabs alongside sausage batches.

Honest Limitation (Not a dealbreaker): The "CXLD" designation adds 12 inches of horizontal depth, NOT vertical hanging height; 50 lb batches are best accommodated laid flat on screens rather than full-length hanging.
Who should skip: Operators exclusively hanging 20″+ links who do not want to use horizontal screens.
See Decision Profile View Amazon Offer

As an Amazon Associate I earn from qualifying purchases.

Pre-Flight Risk Reversal Checklist

4 critical verifications before buying sausage smoking equipment.

Eliminate post-purchase remorse and product returns by running these physical checks:

Step 01

100–120°F Controller Precision

Verify that the controller maintains stable temperatures below 130°F without radiant element flare-ups that trigger fat-out.

Step 02

25″+ Usable Vertical Clearance

Measure internal height from top hanging dowels to the grease diffuser, ensuring at least 25″ of clear drop for 16″ casing links.

Step 03

Sub-800W Low-Temp Smoke Element

Confirm the cabinet features a low-wattage smoke generation mode that produces smoke without spiking ambient internal heat.

Step 04

Positive-Draft Moisture Dampers

Check for adjustable top exhaust dampers to release humidity during the crucial casing drying phase before smoke application.
