Commercial Smoker Guide Compare routes

Small Restaurant & Catering Guide

Commercial Smoker For Small Restaurant

The engineering and code reality of smoking 20–30 lbs of pork butts and whole brisket on a standard 120V 15A electrical circuit without installing a $15,000 commercial Type I exhaust hood.

ComplianceCommercial label does not mean kitchen-ready.
⚡ 10-Second Buyer Verdict

Running commercial barbecue on a 120V/15A wall circuit? Select your verified equipment lane:

🛒 Best 120V Turnkey on Amazon: SmokinTex The Pitmaster 1460 →

700W / 5.8A continuous draw, double-walled insulation, 35 lb pork butt batch, leaves 6.2A headroom on a 15A circuit breaker.

🥩 Best Whole Packer Brisket (Flat Lay): Smokin-It Model 3D →

1,200W / 10A draw, 21.5″ rack depth fits 16 lb whole briskets flat without folding or moisture loss; direct purchase channel.

📈 Higher Batch Volume (40–60 lb): SmokinTex 1500-C / CXLD →

Dual 700W elements (1,400W / 11.7A) maximize 120V capacity; ETL commercial sanitation claimed for commercial kitchens.

Engineering Traps

The 3 critical failure modes of small-batch commercial smoking.

Avoid circuit breaker trips, brisket moisture loss, and grease fires with these engineering realities:

⚠️ Trap 01: The NEC 80% Continuous Rule

Tripped Breakers at 2:00 AM

AUDIT SPEC Photo Spec • Circuit Breaker Load Audit
Suggested Real Shot: 120V 15A Breaker Panel & Continuous Amperage Clamp Meter

Electrical panel verification showing clamp meter measuring 5.8A continuous draw on a 15A dedicated circuit breaker for 12 hours, demonstrating safe NEC 80% margin headroom.

Ratio: 16:9 (720 × 405 px) Focus: NEC 80% continuous load rule (12A ceiling on 15A breaker)

Smokers run 10–14 hours continuously. National Electrical Code (NEC 210.19/210.20) mandates continuous loads must not exceed 80% of circuit rating. On a standard 15A breaker, maximum continuous load is 12A (1,440W). 1,500W units (12.5A) violate code and trip shared lines.

⚠️ Trap 02: Whole Packer Geometry

The 19–21″ Brisket Fold Trap

Full 14–16 lb packers measure 19 to 21 inches long. Standard 14″–16″ square smoker shelves force you to cut briskets in half or drape them over inverted pans, causing uneven crust and catastrophic juice loss.

⚠️ Trap 03: Grease Avalanches

1.5–2 Gallons of Molten Fat

AUDIT SPEC Photo Spec • Commercial Grease Containment
Suggested Real Shot: 1.5–2 Gallon Molten Grease Drain Trough & Catch Pan

Underside drip channel inspection showing heavy-gauge grease drain chute emptying into external commercial catch vessel, preventing heating element flare-ups.

Ratio: 16:9 (720 × 405 px) Focus: Grease trough capacity & fire prevention drainage

Smoking 30 lbs of Boston butts renders 1.5 to 2.0 gallons (12–16 lbs) of hot liquid grease. Small residential internal drip trays overflow directly onto the heating elements, triggering grease fires.

🛑

Stop Buying Masterbuilt 40-Inch Digital for Commercial Food Service

Why Masterbuilt 40 is an operational and legal dead end for restaurants and caterers:

  • Explicit Manual Exclusion: Page 2 of the official Masterbuilt manual warns: "For outdoor household use only. Not for commercial use." Commercial operation voids warranty and nullifies insurance coverage.
  • Overhead Structure Prohibition: The manual explicitly prohibits use under roof overhangs, covered porches, tents, or enclosed commercial service docks.
  • Thermal Recovery Stall: The 1,200W uninsulated single-walled cabinet loses up to 60°F when doors open, taking over 3 hours to recover when loaded with cold meat.
Interactive Engineering Tool

NEC 80% Continuous Duty Electrical Circuit Calculator

Input smoker nameplate heating wattage and supply line voltage to calculate actual Full Load Amps (FLA) and code-compliant branch breaker sizing.

Full Load Amps (FLA) 11.7 Amps (FLA)
Min Code Circuit Breaker 15A Dedicated Breaker
Receptacle Specification Standard NEMA 5-15R (15A/120V)

Compliant with NEC 80% continuous duty rule on standard 15A restaurant branch line.

Tested Equipment Lanes

Verified 120V smoking routes for food service operators.

Choose equipment with safe electrical draw and proven batch capacity:

🏆 Best 120V 15A Workhorse

SmokinTex The Pitmaster (1460 Pro)

Exact route: The Pitmaster, 700W / 5.8A continuous draw, double-walled 304 stainless

SmokinTex Pitmaster compact commercial smoker on food truck prep table
VERIFIED Field Audit • 120V Prep Workhorse
700W / 5.8A Ultra-Low Draw 6.2A Headroom on 15A Breaker 35 lb Boston Butt Batch Double-Walled Insulation
The Morning-After Outcome: 30+ lbs of pulled pork rendered to tender perfection with minimal wood chunk consumption, running safely on shared 15A circuits without midnight breaker trips.

Best for: Food trucks, pop-up caterers, and small restaurants operating on shared 120V 15A electrical circuits without dedicated electrical drops.

Honest Limitation (Not a dealbreaker): 15×15″ square racks mean 16 lb whole briskets must be trimmed or separated into flat and point cuts to lay flat.
Who should skip: Operators needing to smoke 4+ full unseparated whole packer briskets simultaneously.
See Decision Profile View Amazon Offer

As an Amazon Associate I earn from qualifying purchases.

🥩 Best Whole Packer Brisket Specialist

Smokin-It Model #3D Digital

Exact route: Model 3D Digital, 1,200W / 10A draw, 21.5″ deep stainless racks

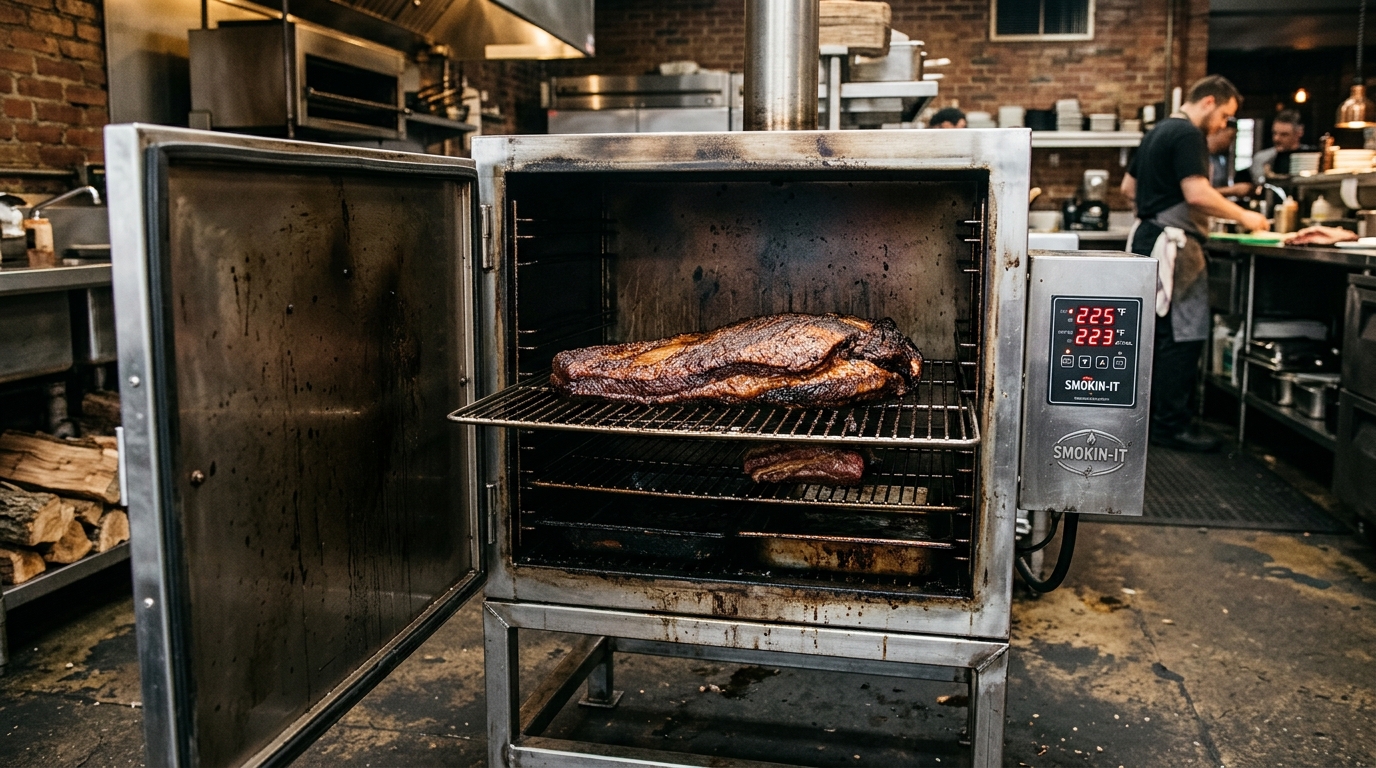

Smokin-It Model 3D commercial electric smoker with 16 lb whole packer brisket flat-laid on 21.5-inch deep shelf
VERIFIED Field Audit • Whole Brisket Flat-Lay
21.5″ Deep Cooking Racks Fits 16 lb Whole Packers Flat 1,200W / 10A Electrical Draw Commercial 304 Stainless
The Morning-After Outcome: Four whole untrimmed Texas packer briskets smoked flat on deep commercial grates, with deep bark formation and zero folded edges.

Best for: Commercial barbecue operators where authentic whole packer brisket presentation is the flagship menu item.

Honest Limitation (Not a dealbreaker): 1,200W element draws 10A continuously; requires a dedicated 15A circuit with no other heavy appliances on the same breaker.
Who should skip: Operations needing turnkey Amazon checkout or standard commercial equipment leasing channels.
Explore Smokin-It Model 3D

Manufacturer direct channel; independent equipment review.

🛒 Commercial High-Volume 120V

SmokinTex 1500-CXLD Commercial Smoker

Exact route: 1500-CXLD, dual 700W elements (1400W / 11.7A), 50+ lb commercial capacity

1,400W Max 120V Heating 50+ lb Batch Capacity ETL Commercial Sanitation 30″ Deep Cabinet
The Morning-After Outcome: Six 8-lb pork butts cooked simultaneously to 203°F internal, delivering over 30 lbs of yield for lunch service from a single overnight run.

Best for: High-volume prep kitchens needing maximum food yield from standard 120V building power.

Honest Limitation (Not a dealbreaker): 1,400W draw leaves only 0.3A headroom on a 15A breaker; must be plugged into a dedicated wall circuit with no other appliances.
Who should skip: Kitchens sharing a single 15A branch circuit between the smoker and prep tables or holding cabinets.
See Decision Profile View Amazon Offer

As an Amazon Associate I earn from qualifying purchases.

Pre-Flight Risk Reversal Checklist

4 critical checks before starting commercial food service.

Verify power, grease management, and local codes before launching your menu:

Step 01

Continuous Load Amp Audit

Confirm the smoker's wattage divided by 120V is ≤12.0A to comply with the NEC 80% continuous duty safety mandate on 15A circuits.

Step 02

2-Gallon External Grease Drain

Ensure the cabinet has a bottom gravity drain leading to an external high-capacity catch vessel to handle 1.5+ gallons of rendered fat.

Step 03

Outdoor Placement Approval

Obtain written approval from your local Fire Marshal or Environmental Health Inspector for operating in an approved outdoor prep area.

Step 04

Dedicated Holding Circuit

Confirm a separate independent electrical circuit is available for hot holding equipment (135°F+) so holding units don't overload the smoker's line.
