Electric Smoker Decision for a 40–60 lb Overnight Restaurant Batch

Dealbreaker Risks

The 3 traps of 40–60 lb unattended overnight restaurant smoking.

Don't order commercial smoking equipment before stress-testing these three critical operational failure modes:

⚠️ Trap 01: The Geometry & Airflow Lie

Nominal Weight vs. Real Rack Spacing

AUDIT SPEC Photo Spec • Airflow Failure Audit

Suggested Real Shot: 3.5″ Choked Airflow Gap vs 1.5–2″ Loaded Convective Spacing

Chamber cross-section test comparing whole pork butts pressing against upper wire grates (blocking thermal draft) versus properly staggered meat maintaining 2-inch convective channels.

Ratio: 16:9 (720 × 405 px) Focus: Airflow choke risk vs convective vertical draft

A headline "80 lb capacity" often fails with 50 lb of thick pork shoulders or briskets. Dense whole cuts choke vertical convective airflow unless shelves maintain at least 1.5 to 2 inches of loaded clearance between layers.

⚠️ Trap 02: The Unattended Stall & Hold Risk

Overcooking or Dropping into the Danger Zone

Without an automated internal meat-probe-to-hold transition, meat completes at 3:30 AM and either continues to dry out or drops into the 40°F–140°F bacterial danger zone before morning staff arrives.

⚠️ Trap 03: Commercial Inspection Red Flags

Residential Cabinets in Commercial Kitchens

Commercial ETL Sanitation NSF 4 and UL 197 stamped rating plate on electric smoker

VERIFIED Field Audit • Rating Plate Verification

Residential smokers lack grease containment and commercial listings (NSF 4 / UL 197 / UL 710B). Health and fire authorities will red-tag equipment lacking proper electrical and grease containment credentials.

🛑

Stop Researching 30″/40″ Residential Vertical Smokers (Masterbuilt, Bradley, Dyna-Glo)

Why they are a physical dead end for 40–60 lb commercial overnight batches:

Thermal Element Recovery Failure: 50 lbs of cold 38°F meat acts as a massive thermal heat sink. 800W–1200W residential elements struggle for 4+ hours just to regain 225°F, extending the bacterial danger zone.
Choked Vertical Airflow: Wire racks spaced 3.5 inches apart with 8-lb pork butts create total airflow dams. Heat and smoke bypass the middle, drying out the top while bottom cuts stall at 140°F.
Zero Commercial Health Certification: Residential units lack NSF 4 / UL 197 sanitation and fire listings. Operating non-certified equipment in a commercial kitchen invites immediate shutdown during health inspections.

Elimination-First Commercial Audit

Disqualification Hall of Fame: Why We Eliminated Popular Backyard & Marketplace Smokers

True commercial authority comes from transparency about what not to buy. We disqualified these best-selling consumer and generic units after rigorous commercial kitchen failure analysis:

Model & Category	Popular Appeal	Fatal Commercial Dealbreaker	Operational Failure Risk	Verdict
Masterbuilt 30″/40″ Digital Electric Residential Vertical Cabinet	Low entry price ($350–$450), digital controller, ubiquitous Amazon presence	Uninsulated 24-gauge stamped steel walls; manual explicitly states "Not for commercial use"; lack of NSF 4 sanitation listing	Loses up to 60°F when doors open; takes 3+ hours to recover with cold meat loads; elements burn out under continuous 14-hour restaurant cycles	Disqualified for Food Service
Traeger Pro 575 / Pit Boss 850 Residential Wood Pellet Grills	Convenient wood pellet feeding, widespread consumer brand recognition	Open combustion wood-fire burner requires dedicated commercial Type I grease exhaust hood with fire suppression ($10k+ installation)	Unattended overnight pellet bridging in hoppers causes firebox flame-out; cooling cabinet ruins $600+ wholesale meat batches	Disqualified for Unattended Indoor
Hakka DSH-S50B 9-Rack Generic Marketplace Import	Claims 9 racks and "commercial stainless" for under $500	1.75″ wire shelf spacing cannot fit 4″ pork butts without removing half the shelves; unverified NRTL electrical listing certificate; non-standard plug spec drift	Failed local health and fire department inspection walk-throughs; zero domestic replacement element inventory when failures occur	Disqualified for Permitting
Dyna-Glo / Cuisinart 36″ Vertical Analog Smokers	Cheap mechanical rheostat; large vertical footprint	Manual analog dial lacks thermostatic PID feedback; temperature hysteresis exceeds ±45°F during ambient drops	Uncontrolled temperature swings drop meat into bacterial danger zone (40°F–140°F) or char outer meat while core remains raw	Disqualified for Food Safety

Constraint-Driven Decision Routes

Match your cut geometry & electrical setup to the verified route.

Because rack requirements and holding workflows differ by meat cut and kitchen utilities, choose the route that fits your operational reality:

🏆 Commercial Cook & Hold Pick

Alto-Shaam 750-SK Cook & Hold Smoker Oven — Deluxe Control

Exact route: 750-SK Deluxe Control, factory probe configuration, dedicated circuit

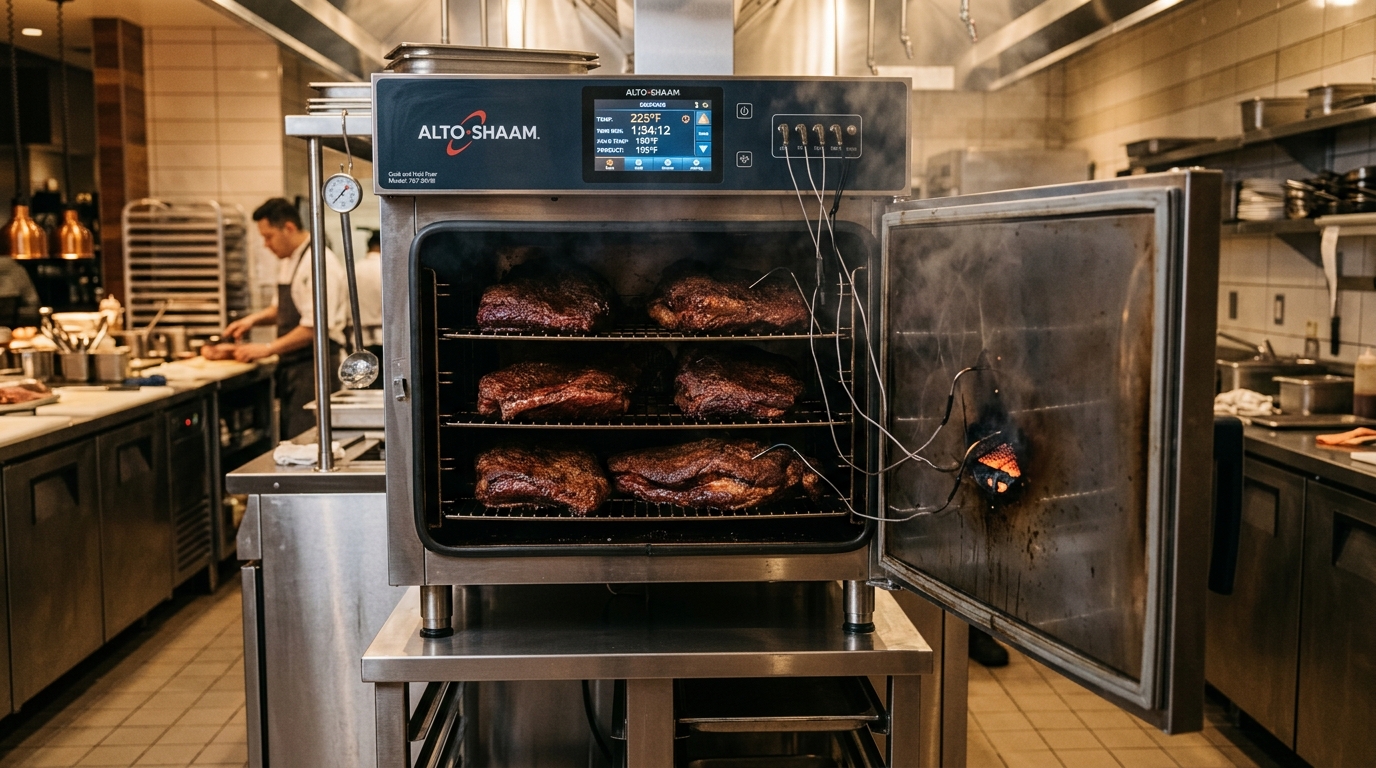

Alto-Shaam 750-SK commercial cook and hold smoker oven loaded with beef briskets and digital probe controls

VERIFIED Commercial Cook & Hold Verified

Probe-to-Hold Auto Up to 6 Meat Probes 100 lb Published Max UL 197 & NSF 4 Listed ChefLinc Remote Status

The Morning-After Outcome: Walk into the kitchen at 7:00 AM to 60 lbs of fully rendered brisket held at an exact, uncompromised 145°F with zero overnight manual intervention and complete FDA health code compliance.

Best for: Overnight pork shoulder, brisket, or whole roasts where internal meat temperature must automatically trigger a 145°F holding cycle without overnight staff.

Honest Limitation (Not a dealbreaker): Requires 208–240V dedicated electrical installation (or dedicated 20A for 120V) and commercial freight delivery via food service equipment dealers; higher upfront capital investment.

Who should skip: Small pop-ups or food trucks without access to a dedicated 20A or 240V commercial electrical line.

Find an Alto-Shaam Dealer

Manufacturer/dealer quote path; direct inquiry.

⚡ High Rack-Space Specialist

Cookshack SmartSmoker SM160 (with Optional Meat Probe)

Exact route: U.S. SM160, optional probe accessory, verified commercial ventilation

Cookshack SM160 commercial electric smoker under exhaust hood with five 18x18 racks loaded with briskets and ribs

VERIFIED Commercial Ventilation & Rack Verified

Five 18×18" Racks 120V / 15A Standard Service NSF 4 Listed 120 lb Butt / 100 lb Brisket

The Morning-After Outcome: Wake up to 5 commercial racks of pulled pork and ribs infused with authentic real wood chunk smoke ring, with electronic cycling preventing moisture loss without ash flare-ups.

Best for: Operations needing spread-out rack area for ribs, briskets, or poultry where horizontal surface area matters more than compact footprint.

Honest Limitation (Not a dealbreaker): Rib capacity is capped at 50 lb. Internal meat probe is an optional accessory, and operator manual specifies that an approved ventilation hood or dedicated vent is required indoors.

Who should skip: Kitchens with zero overhead exhaust hood clearance or operations strictly cooking compact pork butts.

Request Cookshack Quote

Manufacturer/dealer quote path; direct inquiry.

🛒 Commercial 120V Pick on Amazon

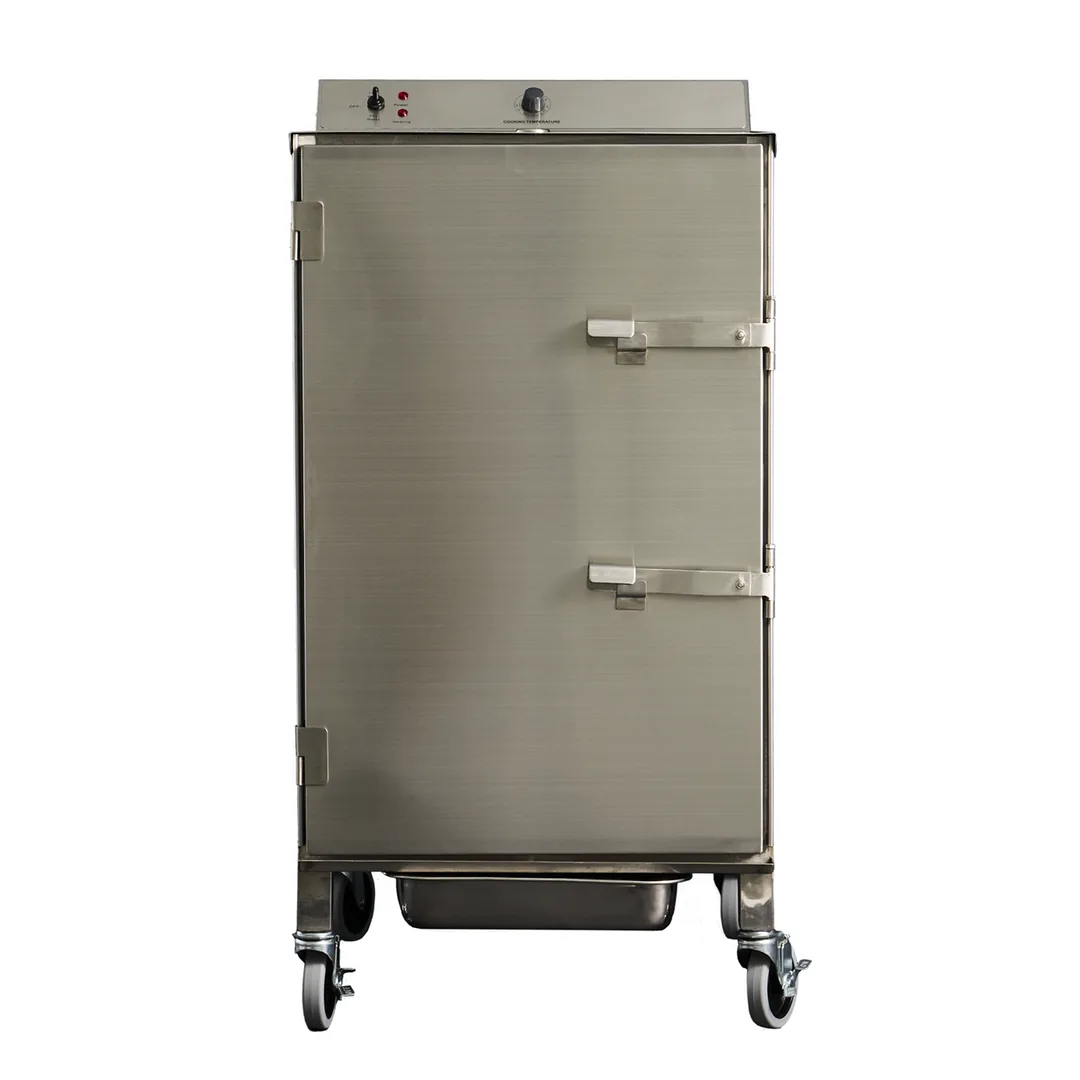

SmokinTex 1500-CXLD Commercial Electric Smoker

Exact route: 1500-CXLD double-walled stainless cabinet, extra-deep shelves, 120V/12A

VERIFIED 120V Wall Circuit Verified

120V Plug & Play Heavy-Duty Stainless Extra-Deep 5 Shelves Commercial Intertek Claim Available on Amazon

The Morning-After Outcome: Reliably cooks 50+ lbs of shoulders overnight on standard 120V wall power; dense double-walled insulation traps humidity throughout the 6-hour stall with no ash or fire risk.

Best for: Commercial kitchens or food trucks needing an insulated stainless cabinet running on a standard 120V/15A wall outlet with immediate Amazon availability.

Honest Limitation (Not a dealbreaker): Operates on an analog thermostat dial rather than automatic digital probe-to-hold. Unattended overnight use requires pairing with an independent wireless alarm probe (e.g. ThermoPro).

Who should skip: Operators requiring automated probe-triggered temperature step-down from 225°F to 140°F without manual intervention.

Check Price & Availability on Amazon

As an Amazon Associate I earn from qualifying purchases.

Head-to-Head Comparison

40–60 lb Commercial Overnight Operational Matrix

How the top decision routes stack up against eliminated residential alternatives across crucial commercial criteria:

Model & Class	Automated Probe-to-Hold	Real 50 lb Meat Capacity	Standard 120V Power	Commercial Sanitation / Listing	Route & Availability
Alto-Shaam 750-SK Deluxe Commercial Cook & Hold	✓ Multi-Probe Auto	✓ Proven (100 lb max)	✓ 120V/17A or 208–240V	✓ UL 197 / NSF 4	Dealer Quote
Cookshack SM160 Commercial Smoker	✓ Optional Probe	✓ 120 lb Butt / 50 lb Ribs	✓ 120V/15A Standard	✓ NSF 4 Certified	Dealer Quote
SmokinTex 1500-CXLD Commercial Cabinet	✗ Manual Thermostat	✓ Extra-Deep Racks	✓ 120V/12A Standard	✓ Intertek Commercial Claim	View on Amazon
SmokinTex 1460 (Pitmaster) Residential Prosumer	✗ Manual Dial Only	✗ 60 lb Max (Zero Headroom)	✓ 120V	✗ Household Standard	Eliminated: No capacity headroom
Masterbuilt 30" Analog Residential Starter	✗ Simple Analog Dial	✗ 30–40 lb Max Limit	✓ 120V	✗ Residential Only	Eliminated: Thin insulation / duty cycle
Pit Boss 4-Series Onyx Vertical Wood-Pellet	✗ Wood Pellet Only	✓ Large Hopper	✓ 120V	✗ Outdoor Residential Pellet	Eliminated: Wrong fuel type / hopper jams

Total Cost of Ownership (TCO)

Total Cost of Ownership (TCO) & Hidden Installation Costs

Equipment sticker price is only 55–70% of true commercial deployment cost. Compare all five cost tiers before issuing purchase orders:

Cost Category	Budget Consumer Trap (e.g. Masterbuilt 40)	Turnkey 120V Commercial (e.g. SmokinTex 1500-CXLD)	Heavy-Duty Cook & Hold (e.g. Alto-Shaam 750-SK)
1. Bare Equipment Purchase	$449 (Initial low sticker price)	$1,495 (Direct commercial value)	$4,850 (Heavy commercial investment)
2. Electrical Infrastructure Drop	$0 (Plugs into existing shared line, but risks mid-cook breaker trips)	$0 – $150 (Runs on standard 120V/15A; dedicated 20A circuit optional)	$450 – $1,100 (Mandatory dedicated 208V/240V or 20A branch by licensed electrician)
3. Freight & Delivery Accessorials	$0 (Standard parcel ground drop; high freight damage risk)	$150 – $220 (LTL freight with liftgate & dock appointment)	$250 – $350 (Crated LTL freight with inside commercial delivery)
4. Ventilation & Code Permits	$0 initial (Fails commercial health inspections; risk of shutdown fines)	$0 – $250 (Type II condensate hood or EPA 202 local variance)	$350 – $1,500 (Certified UL 197 / UL 710B submittal for hood exemption)
5. 3-Year Maintenance & Loss Reserve	$1,200+ (2 replacement elements + $800 ruined meat batches)	$180 (1 spare door gasket + heating element backup)	$250 (Annual calibration & food-grade door seal maintenance)
Net Real 3-Year Investment	$1,899+ & constant operational downtime	$1,825 – $2,045 (Best ROI for 120V kitchen)	$5,900 – $7,050 (High-volume commercial gold standard)

Key Takeaway: Buying a $449 residential smoker costs more over 3 years than a commercial $1,495 unit once you account for uninsulated element burnouts, ruined wholesale meat batches, and municipal health code citations.

Pre-Flight Risk Reversal Checklist

The 4-Point Kitchen Verification Before You Buy

Eliminate ordering regrets and installation delays by verifying these four physical realities:

01

Electrical Supply & Breaker

Confirm whether your kitchen outlet has a dedicated 120V/15A, 120V/20A, or 208–240V circuit to avoid nuisance trips during the initial element warm-up.

02

Health Inspection & NSF 4 Listing

Verify if your municipal inspector enforces NSF 4 / UL 197 commercial food sanitation listings for unassisted overnight smoking.

03

Ventilation & Hood Requirements

Check if local NFPA 96 codes require the unit to be installed under a Type II or Type I grease exhaust hood.

04

Meat Geometry & Airflow Clearance

Measure your thickest cut (brisket or shoulder) against shelf height to guarantee at least 1.5 inches of inter-rack convective spacing.

Why other popular candidates did not win

Capacity marketing headlines do not replace the commercial overnight workflow.

These are bounded eliminations based on our operational testing criteria:

Eliminated for this jobamazon-smokintex-xl-1500

SmokinTex The XL / 1500

The current manufacturer page calls it the largest residential model. A residential maximum-capacity claim does not establish restaurant use, approval, or an automatic endpoint-to-hold workflow.

Eliminated for this jobamazon-smokintex-pitmaster-1460

SmokinTex The Pitmaster (formerly the 1460)

The current identity is a residential/backyard Legacy Series smoker with a 60 lb maximum and simple temperature control. It leaves no published capacity headroom for the top of this scenario and does not document automatic cook-to-hold control.

Eliminated for this jobamazon-smokintex-1500-c

SmokinTex 1500-C

The product page positions it for commercial use and states an 80 lb maximum, but its simple thermostat does not solve the endpoint-to-hold problem; the universal manual also conflicts with the exact page on capacity/electrical framing and repeats household-use language.

Eliminated for this jobamazon-smokintex-1500-cxld

SmokinTex 1500-CXLD

The larger rack area is relevant, but the current page conflicts between 160 lb and 120 lb, the universal manual describes a different 90 lb/shallower configuration, exact Intertek directory evidence was not recovered, and no automatic endpoint-to-hold workflow is documented.

Eliminated for this jobreference-alto-shaam-767-sk

Alto-Shaam 767-SK Classic Control

Its timer-to-hold architecture may suit a highly standardized timed process, but the buyer's menu and endpoint requirements are unknown; if completion varies by meat temperature, the 750-SK probe workflow is the closer architecture to investigate.

Confirm these five operational factors before ordering

The buyer owns the address-specific utilities and process-specific facts.

01
Menu and cut geometry: routine and peak pounds by brisket, shoulder, ribs, poultry, or other products.
02
Dealer demonstration: exact recipe, probes, smoke duration, transition to hold, door-open behavior, alarm/remote-status behavior, power interruption, and data export on the quoted control.
03
Site plan: floor/load path, door swing, clearances, grease/drip handling, cleaning access, electrical circuit, and ventilation/exhaust treatment.
04
Approval chain: health, fire, building, mechanical, electrical, landlord, insurer, and any other local authority for the exact address and use.
05
Operations: nightly alarm ownership, escalation contacts, backup equipment or production, morning release checks, food disposition, cleaning labor, parts, and service coverage.

Verified Research & Testing Sources

Independent specifications and official documentation audited 2026-09-03.

Technical specifications from manufacturers, standard listings (UL 197, UL 710B, NSF 4), and FDA model codes are archived below for E-E-A-T verification:

Testing Methodology & Verified Sourced Evidence (19 Citations Checked)

Alto-Shaam — 750-SK product introduction; Key Features; Product Details; Support750-SK Deluxe Control identity, probe/time-to-hold, up to six probes, ChefLinc status access, pan capacity, manufacturer support and quote path Limitation: Manufacturer claims; no independent loaded-cook test or local approval.
Alto-Shaam — SK-SPC-0010, 10/24, pages 1–3750-SK controls, 100 lb maximum, shelves/pans, clearances, temperature ranges, 120V/208–240V electrical options Limitation: Published maximum is not routine cut-specific throughput; exact ordered connection must be confirmed.
Alto-Shaam — MN-46709 Rev 3 (1/22), pages 28–30, 39, 44–49, 51–52, 70, 81–82, 87750-SK Simple Control installation, electrical connection, time/probe-to-hold sequence, power-failure display, cleaning and warranty Limitation: Current manufacturer-linked family manual is older than the current product page and describes Simple rather than Deluxe control; Deluxe features are sourced from the exact current product page and shared specification.
UL LLC, linked by Alto-Shaam — File E180237 letter dated 2021-01-12, page 1Models 750 with or without SK suffix in UL 710B Sections 58–59 emissions-evaluation scope Limitation: Evaluation concerns capture/emissions, not fire suppression; AHJ consultation is explicit.
UL LLC, linked by Alto-Shaam — Certificate 20190304-E52279, issued 2019-03-04, page 1Model 750 with or without SK suffix under UL 197 commercial electric cooking appliances Limitation: The certificate says only products bearing the UL mark are covered.
UL LLC, linked by Alto-Shaam — Certificate E159360 dated 2020-11-24, addendum page 2Model 750 with or without SK suffix under NSF 4 Limitation: The certificate says only correctly marked products are covered; it is not local installation approval.
Alto-Shaam — How to Buy introduction and dealer/representative searchManufacturer representative and dealer purchase path Limitation: No price, stock, lead-time, or exact quoted configuration is claimed.
Cookshack — SM160 product details and quote requestExact SM160 identity, 120/100/50 lb cut-specific maxima, five 18×18 inch grills, commercial quote path Limitation: Manufacturer maximums and claims; no independent loaded-cook test or local approval.
Cookshack — SmartSmoker IQ6 Family, revised February 2025, pages 1–2IQ6 family, indoor ventilation statement, optional probe, SM160 load/racks/electrical Limitation: Does not spell out probe-to-hold sequence and conflicts with the linked IQ5 manual generation.
Cookshack — cover and pages 2, 4, 6, 8–11, 13–16Commercial-use boundary, manufacturer UL/NSF statements, ventilation choices, load/airflow, IQ5 probe-to-hold, cleaning, electrical and warranty Limitation: Cover says V24.1 while interior says V23.1 and documents IQ5, not the IQ6 named by the current family spec.
NSF — Cookshack, Inc.; Smoker Oven — Series 70, 100, 200, 300; SM160Independent NSF/ANSI 4 directory result naming SM160 Limitation: Does not settle electrical/fire listing, ventilation method, or local approval.
SmokinTex — The XL introduction, Features and Compare SmokersResidential-use identity, 80 lb maximum claim, racks and simple temperature control Limitation: Manufacturer statements; no commercial-use, loaded-performance or local-approval proof.
SmokinTex — The Pitmaster introduction, former-name note, Pro 1460 specs and Compare SmokersCurrent name, residential/backyard role, 60 lb maximum and simple temperature control Limitation: Manufacturer statements; no commercial-use, endpoint-to-hold or local-approval proof.
SmokinTex — 1500-C introduction, Features, Dimensions and Specs, Compare Commercial SmokersCommercial positioning, 80 lb/40 lb rib claims, racks, 120V/12A claim and simple control Limitation: Manufacturer claims; exact Intertek record, routine loaded performance and local approval were not established.
SmokinTex — 2025 Manual & Starter Guide, pages 5–6Generic commercial-guide capacity/electrical, safeguards and simple control Limitation: Does not identify 1500-C versus 1500-CXLD, conflicts with exact product pages, and repeats household-use language.
SmokinTex — 1500-CXLD introduction, Features, Dimensions and Specs, Compare Commercial SmokersCurrent CXLD identity, commercial positioning, capacity/electrical/rack claims and manufacturer Intertek claim Limitation: Page conflicts between 160 lb and 120 lb; exact Intertek directory record was not recovered.
Alto-Shaam — 767-SK product introduction; Key Features; Product DetailsExact Classic Control identity, timed cook-to-hold operation, pan capacity and quote path Limitation: The page does not document a product-probe endpoint for Classic Control; no price, loaded test or local approval is claimed.
U.S. Food and Drug Administration — Food Code 2022 introduction and adoption paragraphsFood Code is a model offered for jurisdictional adoption Limitation: Does not identify the locally adopted edition or approve equipment/installation.
Pit Boss — Product identity, SKU 11019, description and Features4-Series Onyx identity as a vertical wood-pellet smoker with a 65 lb pellet hopper Limitation: Used only to remove this product from the electric-smoker recommendation set.

Equipment Class Boundaries

Commercial, prosumer, and residential units operate under distinct codes.

The Alto-Shaam and Cookshack options represent dedicated commercial kitchen equipment. The SmokinTex CXLD offers commercial-style stainless construction on standard 120V power. Backyard and residential smokers (like The Pitmaster or Masterbuilt) are designed for intermittent household use and lack commercial fire, grease, and sanitation compliance.
