Capacity & Rack Spacing Decision Guide
Why headline rack count is a deceptive sizing metric for commercial barbecue. Compare Hakka's 1,572 sq in wire shelves against Smokin-It's 3,613 sq in commercial capacity, understand why 1.75″ wire pitch cuts usable racks in half for thick meats, and verify 16.5A circuit requirements before purchase.
Need high-volume commercial capacity? Match your routine batch size to proven equipment paths:
8 × 21.25″ square racks, 3,613 sq in total surface area, 90 lb capacity, NSF certified, dual 900W elements (requires dedicated 20A circuit).
Only 5 racks but spaced 5 inches apart for 120 lb of pork butts; UL 197 / UL 710B and NSF/ANSI 4 commercial listings.
Deeper 18×22″ racks, 120V / 11.7A draw, runs safely within NEC 80% continuous limits on standard 15A restaurant outlets.
Dealbreaker Risks
Headline rack count tells you nothing about meat clearance, total surface area, or electrical load:

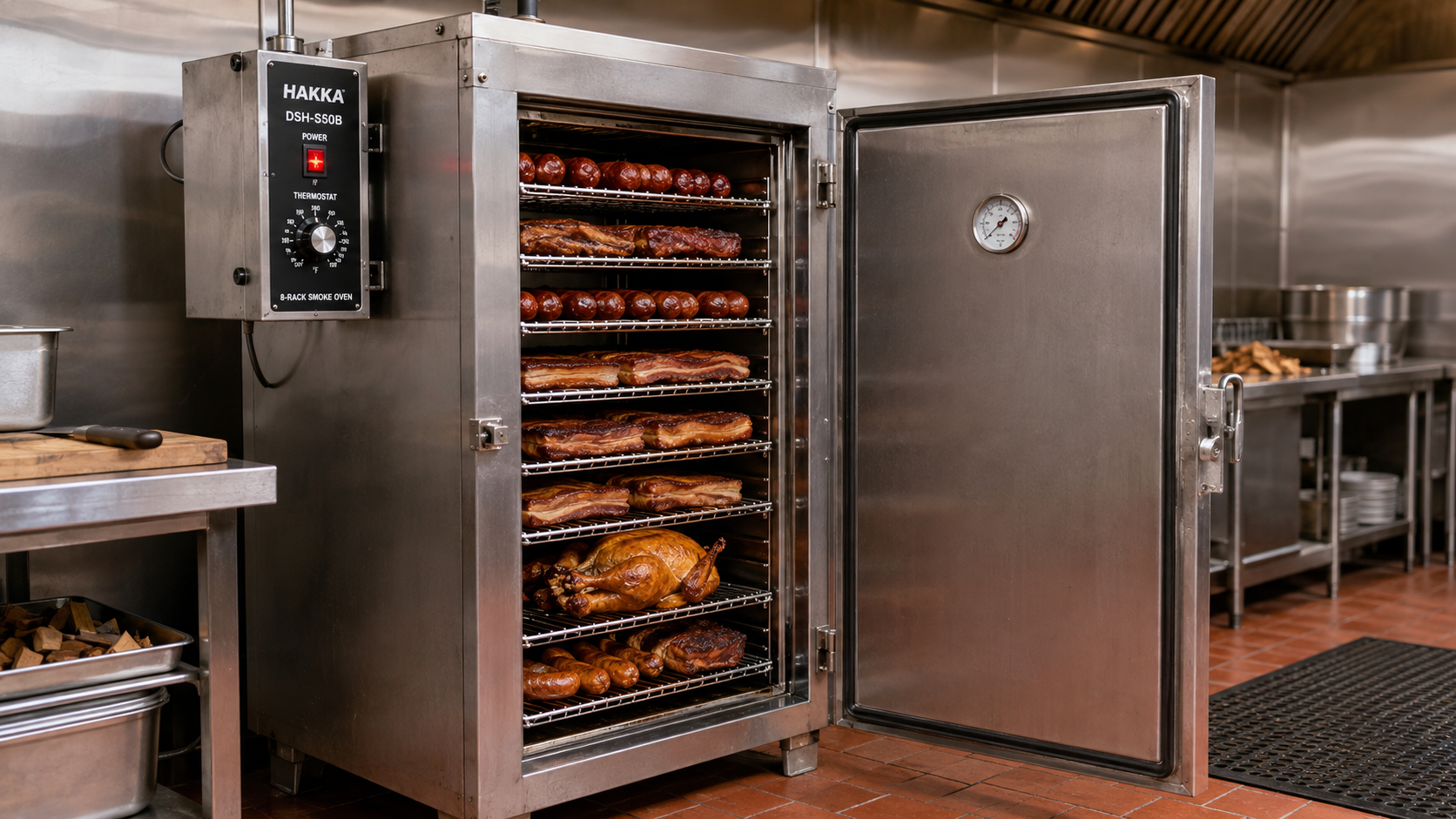

A standard bone-in Boston butt or whole beef brisket flat measures 3.5 to 5 inches thick. In budget 8-rack smokers with 1.75″ to 2.25″ vertical slide rails, loading thick meats physically crushes the meat into the upper shelf or blocks air convection entirely. Operators must remove every alternating shelf, cutting an '8-rack' cabinet down to a 4-rack unit.

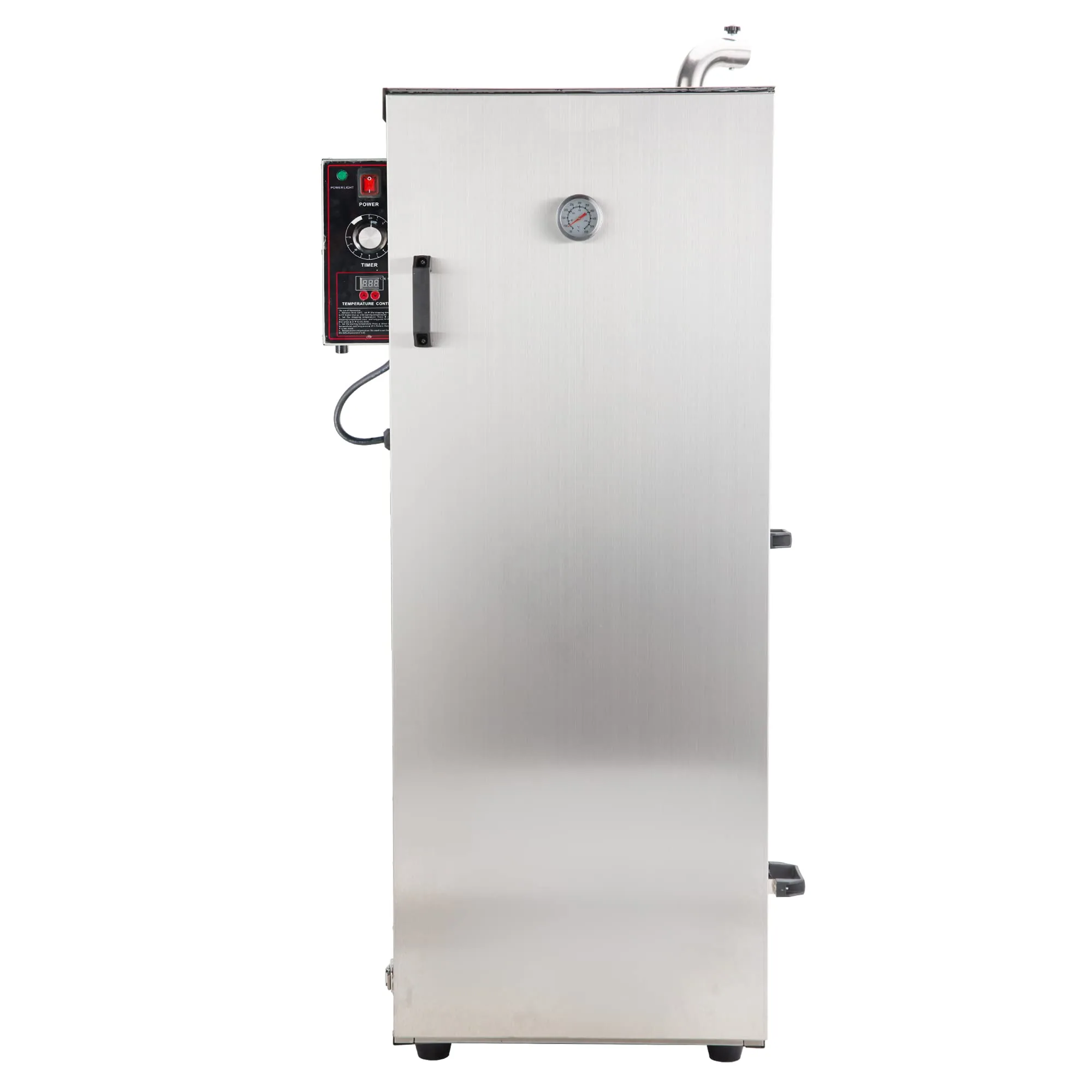

Two smokers sold as '8-rack commercial cabinets' have wildly different capacities. Hakka's eight 15.6×12.6″ shelves total just 1,572 sq in. Smokin-It's eight 21.25×21.25″ shelves provide 3,613 sq in—over 2.3 times the cooking surface. Meanwhile, Cookshack's 5-rack SM160 rates for 120 lbs because 5″ vertical spacing allows natural convective heat transfer around massive roasts.
True 8-rack volume requires substantial heat recovery. The Smokin-It #5D pulls 16.5A at 120V (1,800W). Under National Electrical Code (NEC Article 210.19), continuous commercial heating loads are capped at 80% breaker rating (12A max on a 15A circuit). Running 16.5A on a standard outlet trips breakers during cold-load preheat, demanding a dedicated 20A branch with NEMA 5-20 outlet.
Why unverified 8-rack marketplace imports are a commercial dead end:
Capacity Engineering
Before assuming an 8-rack smoker will hold your batch, calculate the true number of usable racks ($R_{\text{usable}}$):
Real-world calculation for whole Boston butts (4.0″ thick):
Tested Equipment Lanes
Match your batch volume, circuit constraints, and approval requirements:
Exact route: Model #5D-WiFi, 8 × 21.25″ racks (3,613 sq in), dual 900W elements (16.5A @ 120V), NSF listed
Best for: Serious barbecue caterers, pop-up operators, and small BBQ restaurants needing genuine 8-rack high-density capacity on a dedicated 20A circuit.
Manufacturer direct commercial equipment; independent technical evaluation.
Exact route: SM160, five 18×18″ racks with 5″ vertical spacing, 120 lb rating, UL 197 / UL 710B / NSF 4
Best for: Licensed commercial kitchens where health code compliance and fire marshal sign-off are non-negotiable requirements.
Commercial equipment dealership channel; independent compliance audit.
Exact route: 1500-CXLD, dual 700W elements (1400W / 11.7A), 18×22″ extra-deep racks, 120 lb rating
Best for: Food trucks, small caterers, and prep kitchens needing heavy batch volume on standard 120V 15A circuits.
As an Amazon Associate I earn from qualifying purchases.
Pre-Flight Capacity Verification
Verify real dimensions, electrical service, and airflow clearance before ordering:
Multiply rack width by depth by shelf count. Don't compare '8 racks' against '8 racks' without verifying square-inch totals.
Ensure vertical slide spacing accommodates your thickest cuts (pork butt, brisket) with at least 1.5″ convective air gap.
Confirm whether the smoker draws under 12A (standard 15A circuit) or up to 16.5A (requires dedicated 20A NEMA 5-20 outlet).
Check the public NSF or Intertek directory to confirm commercial sanitation listings before purchasing for a permitted restaurant.
